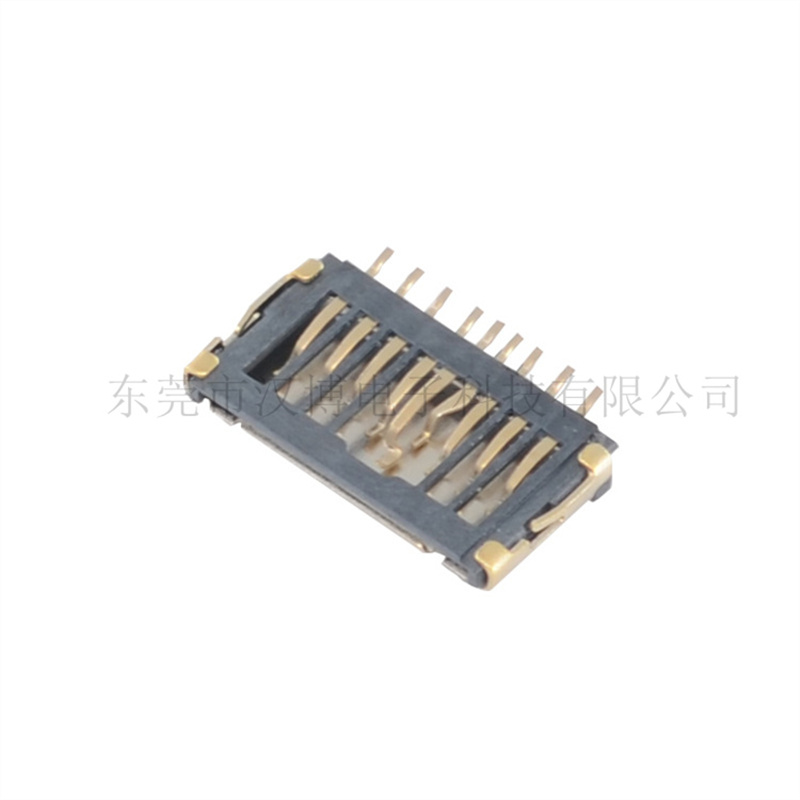

TF簡易式中間帶偵測PIN

TF卡座

品牌：漢博（HANBO）	產品型號：TF-018B-H15
工作溫度：-25oC~+85oC	最小包裝：2500PCS/圓盤

應用領域:數碼產品、安防、電腦、通訊產品、家用電器、智能家居、智能穿戴產品等。

聲明：有關于產品的規格、參數、壽命、工作溫度、手感、防水等級等數據，只作于參考，如需詳細測試報告，請聯系業務人員!

請聯系相關業務索取CAD/3D文件

特性
產品文檔

產品介紹

類型

產品分類

連接器

產品系統

卡座

卡座產品種類

TF卡連接器

類型

Micro型

位數

9位

定位柱

無柱

高度

1.5H/1.7H

方向

臥式

顏色

黑色

電氣

電流(最大)

0.5A

電壓(最大)

100V

接觸電阻

30 mΩ Max

絕緣電阻

1000 MΩ Min

耐電壓

500V AC r.m.s

工作溫度范圍

-25oC~+85oC

機械

裝卡方式

插拔式

安裝方式

表面貼裝

耐用型(插拔次數)-最多次

5000

材料

電鍍類型

鍍鎳/鍍金

電鍍厚度

Gold flash

樹脂材質

LCP

阻燃性等級

UL94 V-0

包裝

包裝方式

卷裝
